Backend ENVs: Integrations

The following ENVs are used for different integrations. Some work with various microservices (when the variable begins with MICROSERVICE) while others are contained within the application.More info on Blockscout Rust MicroServices is available in the blockscout-rs Github Repo.

Time format

Can be set in format 1h for 1 hour, 1m for 1 minute, 1s or 1 for 1 second, 1ms for 1 millisecond. If no unit is provided, the value will be interpreted as seconds.

Note : Before release 5.1.2, all environment variables of time format supported only integers in seconds (without dimensions) as values.

Smart-contract verifier / Eth Bytecode DB

Connecting to the smart contract verification service

Variable	Description	Parameters
`MICROSERVICE_SC_VERIFIER_ENABLED`	If `true`, integration with Rust smart-contract verifier is enabled. `true` is the default value starting from version 6.4.0. Implemented in #5860	Version: v5.1.3+ Default: `true` Applications: API
`MICROSERVICE_SC_VERIFIER_URL`	URL of Rust smart-contract verifier. Implemented in #5860	Version: v5.1.3+ Default: `https://eth-bytecode-db.services.blockscout.com/` Applications: API
`MICROSERVICE_ETH_BYTECODE_DB_INTERVAL_BETWEEN_LOOKUPS`	Minimal time after unsuccessful check of smart contract’s sources in Eth Bytecode DB. Implemented in #7187.	Version: v5.1.3+ Default: `10m` Applications: API
`MICROSERVICE_SC_VERIFIER_TYPE`	Type of smart contract microservice could be either `eth_bytecode_db` or `sc_verifier`. Implemented in #7187	Version: v5.1.3+ Default: `sc_verifier` Applications: API
`MICROSERVICE_ETH_BYTECODE_DB_MAX_LOOKUPS_CONCURRENCY`	Maximum amount of concurrent requests for fetching smart contract’s sources in Eth Bytecode DB. Implemented in #8472	Version: v5.3.0+ Default: `10` Applications: API
`MICROSERVICE_SC_VERIFIER_API_KEY`	API key for verification that metadata sent to verifier microservice from a trusted source. Implemented in #8750	Version: v5.3.2+ Default: (empty) Applications: API

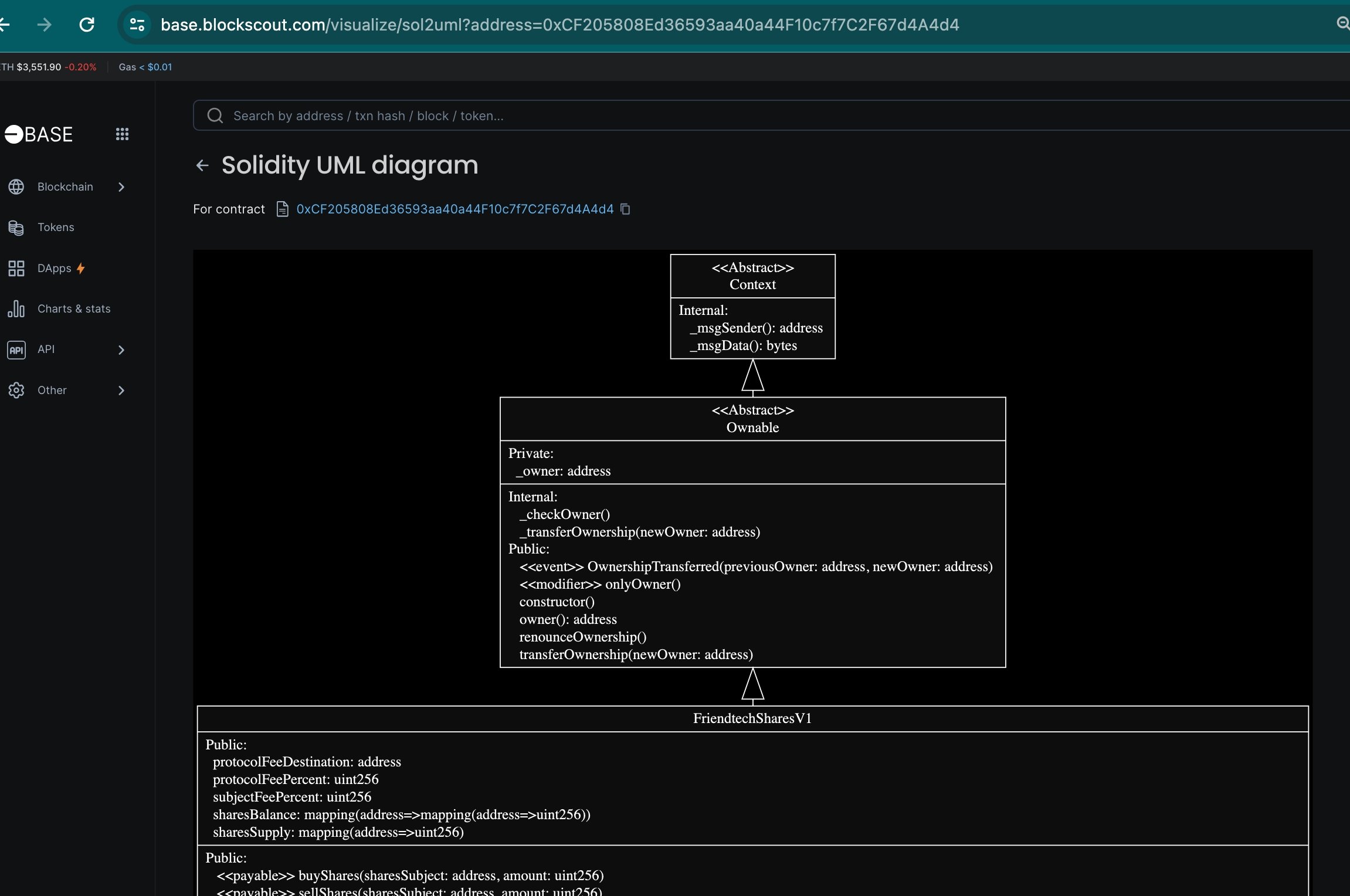

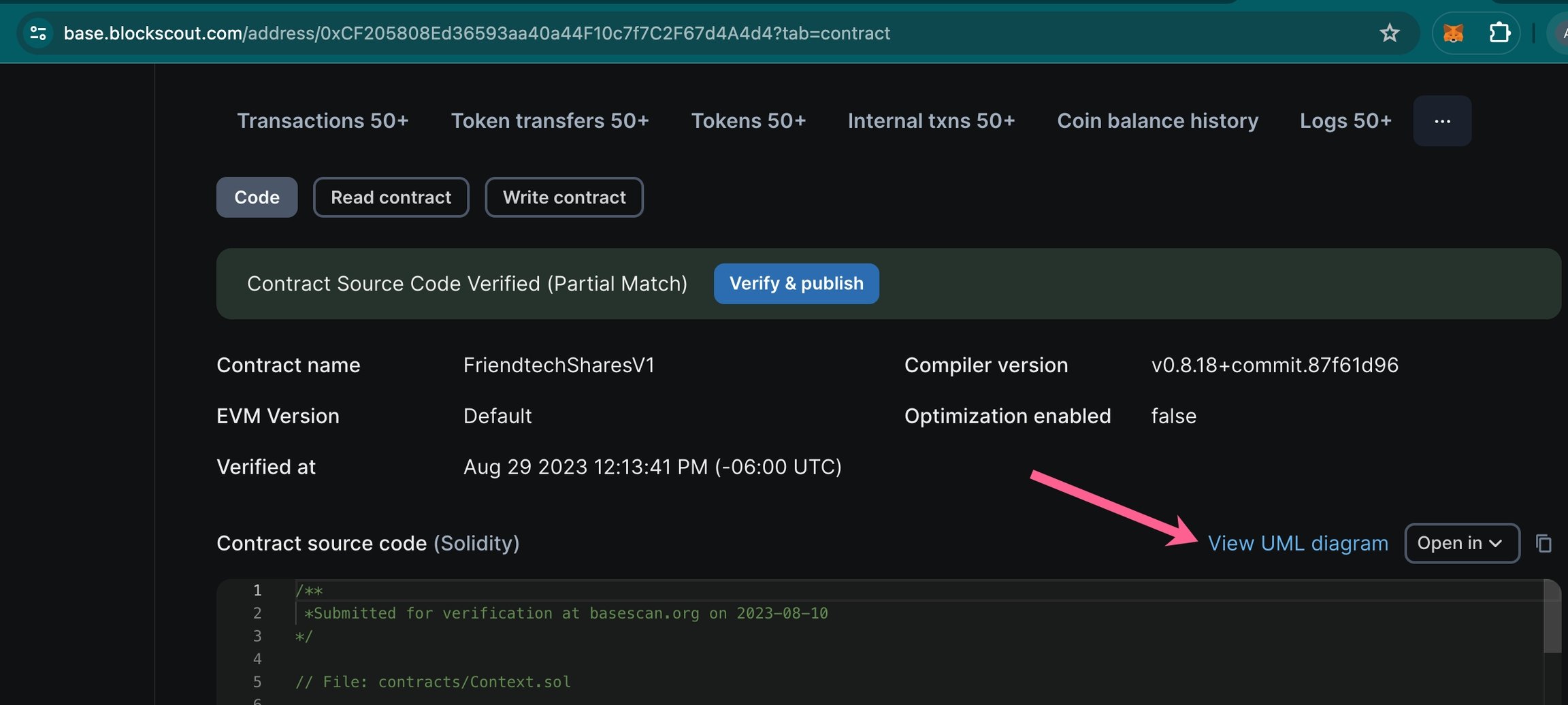

Sol2Uml

Sol2Uml is a visualization tool for Solidity contracts.

Variable	Description	Parameters
`MICROSERVICE_VISUALIZE_SOL2UML_ENABLED`	If `true`, integration with Rust sol2uml visualizer is enabled. Implemented in #6401	Version: v5.1.3+ Default: (empty) Applications: API
`MICROSERVICE_VISUALIZE_SOL2UML_URL`	URL of Rust visualizer. Implemented in #6401	Version: v5.1.3+ Default: (empty) Applications: API

Sig-provider

The Sig-provider microservice is used by Blockscout to display decoded transaction data on transaction pages and to determine transaction actions

Variable	Description	Parameters
`MICROSERVICE_SIG_PROVIDER_ENABLED`	If `true`, integration with Rust sig-provider service is enabled. Implemented in #6541	Version: v5.1.3+ Default: (empty) Applications: API
`MICROSERVICE_SIG_PROVIDER_URL`	URL of Rust sig-provider service. Implemented in #6541	Version: v5.1.3+ Default: (empty) Applications: API

Blockscout ENS

Blockscout ENS provides indexed data of domain name service for blockscout instances. Learn more.

Variable	Description	Parameters
`MICROSERVICE_BENS_ENABLED`	If `true`, integration with Blockscout ENS service is enabled. Implemented in #8972	Version: v5.4.0+ Default: (empty) Applications: API
`MICROSERVICE_BENS_URL`	URL of Blockscout ENS service. Implemented in #8972	Version: v5.4.0+ Default: (empty) Applications: API
`DISABLE_BLOCKS_BENS_PRELOAD`	If `true`, skips ENS name preloading in responses for block list endpoints: `/api/v2/blocks`, `/api/v2/main-page/blocks`, `/api/v2/blocks/optimism-batch/:batch_number`, `/api/v2/blocks/scroll-batch/:batch_number`.	Version: v11.0.0+ Default: `false` Applications: API
`DISABLE_TRANSACTIONS_BENS_PRELOAD`	If `true`, skips ENS name preloading in responses for transaction list endpoints: `/api/v2/transactions`, `/api/v2/transactions/watchlist`, `/api/v2/main-page/transactions`, `/api/v2/main-page/transactions/watchlist`, `/api/v2/addresses/:hash/transactions`, `/api/v2/blocks/:hash/transactions`.	Version: v11.0.0+ Default: `false` Applications: API
`DISABLE_TOKEN_TRANSFERS_BENS_PRELOAD`	If `true`, skips ENS name preloading in responses for token transfer list endpoints: `/api/v2/token-transfers`, `/api/v2/addresses/:hash/token-transfers`, `/api/v2/tokens/:address_hash_param/transfers`.	Version: v11.0.0+ Default: `false` Applications: API

Blockscout Account Abstraction

Enables the User Ops Indexer, a service designed to index, decode and serve user operations as per the ERC-4337 standard

Variable	Description	Parameters
`MICROSERVICE_ACCOUNT_ABSTRACTION_ENABLED`	If `true`, integration with Blockscout Account Abstraction service is enabled. Implemented in #9145	Version: v6.1.0+ Default: (empty) Applications: API
`MICROSERVICE_ACCOUNT_ABSTRACTION_URL`	URL of Blockscout ENS service. Implemented in #9145	Version: v6.1.0+ Default: (empty) Applications: API

Tx Interpreter (Summary) Service

Variable	Description	Parameters
`MICROSERVICE_TRANSACTION_INTERPRETATION_ENABLED`	If `true`, integration with Tx Interpreter Service is enabled. Implemented in #8957	Version: v5.4.0+ Default: (empty) Applications: API
`MICROSERVICE_TRANSACTION_INTERPRETATION_URL`	URL of Tx Interpreter Service. Implemented in #8957	Version: v5.4.0+ Default: (empty) Applications: API

Metadata Service

Variable	Description	Parameters
`MICROSERVICE_METADATA_ENABLED`	If `true`, integration with Metadata Service is enabled. Implemented in #9706	Version: v6.4.0+ Default: (empty) Applications: API
`MICROSERVICE_METADATA_URL`	URL of Metadata Service. Implemented in #9706	Version: v6.4.0+ Default: (empty) Applications: API
`MICROSERVICE_METADATA_PROXY_REQUESTS_TIMEOUT`	Timeout for request forwarding from `/api/v2/proxy/metadata/`. Implemented in #11656	Version: v7.0.0+ Default: `30s` Applications: API

Multichain Search Service

Multichain Search is the single point of search of the data in the all blockchains.

Variable	Description	Parameters
`MICROSERVICE_MULTICHAIN_SEARCH_URL`	Multichain Search Service API URL. Integration is enabled, if this variable value contains valid URL. Implemented in #11139	Version: v6.10.0+ Default: (empty) Applications: API, Indexer
`MICROSERVICE_MULTICHAIN_SEARCH_API_KEY`	Multichain Search Service API key. Implemented in #11139	Version: v6.10.0+ Default: (empty) Applications: API, Indexer
`MICROSERVICE_MULTICHAIN_SEARCH_ADDRESSES_CHUNK_SIZE`	Chunk size of addresses while exporting to Multichain Search DB. Implemented in #12377	Version: v8.1.0+ Default: 7000 Applications: API, Indexer
`MICROSERVICE_MULTICHAIN_SEARCH_TOKEN_INFO_CHUNK_SIZE`	Chunk size of token info while exporting to Multichain Search DB. Implemented in #12867	Version: v9.0.0+ Default: 1000 Applications: Indexer
`MICROSERVICE_MULTICHAIN_SEARCH_COUNTERS_CHUNK_SIZE`	Chunk size of counters while exporting to Multichain Search DB. Implemented in #13007.	Version: v9.1.0+ Default: `1000` Applications: Indexer
`MIGRATION_BACKFILL_MULTICHAIN_SEARCH_BATCH_SIZE`	Batch size of backfilling Multichain Search Service DB. Implemented in #11139	Version: v6.10.0+ Default: 10 Applications: Indexer
`INDEXER_DISABLE_MULTICHAIN_SEARCH_DB_EXPORT_MAIN_QUEUE_FETCHER`	If `true`, multichain DB main (blocks, transactions, addresses) export fetcher doesn’t run. Implemented in #12377.	Version: v9.0.0+ Default: `false` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_MAIN_QUEUE_BATCH_SIZE`	Batch size for multichain DB main (blocks, transactions, addresses) export fetcher. Implemented in #12377.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_MAIN_QUEUE_CONCURRENCY`	Concurrency for multichain DB main (blocks, transactions, addresses) export fetcher. Implemented in #12377.	Version: v9.0.0+ Default: `10` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_MAIN_QUEUE_ENQUEUE_BUSY_WAITING_TIMEOUT`	Timeout before new attempt to append item to multichain DB main (blocks, transactions, addresses) export queue if it’s full. Time format. Implemented in #12377.	Version: v9.0.0+ Default: `1s` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_MAIN_QUEUE_MAX_QUEUE_SIZE`	Maximum size of multichain DB main (blocks, transactions, addresses) export queue. Implemented in #12377.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_MAIN_QUEUE_INIT_QUERY_LIMIT`	Limit of the init query for processing the main export queue to the Multichain DB. Implemented in #12822.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_DISABLE_MULTICHAIN_SEARCH_DB_EXPORT_BALANCES_QUEUE_FETCHER`	If `true`, multichain DB balances export fetcher doesn’t run. Implemented in #12580.	Version: v9.0.0+ Default: `false` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_BALANCES_QUEUE_BATCH_SIZE`	Batch size for multichain DB balances export fetcher. Implemented in #12580.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_BALANCES_QUEUE_CONCURRENCY`	Concurrency for multichain DB balances export fetcher. Implemented in #12580.	Version: v9.0.0+ Default: `10` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_BALANCES_QUEUE_ENQUEUE_BUSY_WAITING_TIMEOUT`	Timeout before new attempt to append item to multichain DB balances export queue if it’s full. Time format. Implemented in #12580.	Version: v9.0.0+ Default: `1s` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_BALANCES_QUEUE_MAX_QUEUE_SIZE`	Maximum size of multichain DB balances export queue. Implemented in #12580.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_BALANCES_QUEUE_INIT_QUERY_LIMIT`	Limit of the init query for processing the balances export queue to the Multichain DB. Implemented in #12822.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_DISABLE_MULTICHAIN_SEARCH_DB_EXPORT_TOKEN_INFO_QUEUE_FETCHER`	If `true`, multichain DB token info export fetcher doesn’t run. Implemented in #12867.	Version: v9.0.0+ Default: `false` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_TOKEN_INFO_QUEUE_BATCH_SIZE`	Batch size for multichain DB token info export fetcher. Implemented in #12867.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_TOKEN_INFO_QUEUE_CONCURRENCY`	Concurrency for multichain DB token info export fetcher. Implemented in #12867.	Version: v9.0.0+ Default: `10` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_TOKEN_INFO_QUEUE_ENQUEUE_BUSY_WAITING_TIMEOUT`	Timeout before new attempt to append item to multichain DB token info export queue if it’s full. Time format. Implemented in #12867.	Version: v9.0.0+ Default: `1s` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_TOKEN_INFO_QUEUE_MAX_QUEUE_SIZE`	Maximum size of multichain DB token info export queue. Implemented in #12867.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_TOKEN_INFO_QUEUE_INIT_QUERY_LIMIT`	Limit of the init query for processing the token info export queue to the Multichain DB. Implemented in #12867.	Version: v9.0.0+ Default: `1000` Applications: Indexer
`INDEXER_DISABLE_MULTICHAIN_SEARCH_DB_EXPORT_COUNTERS_QUEUE_FETCHER`	If `true`, multichain DB counters export fetcher doesn’t run. Implemented in #13007.	Version: v9.1.0+ Default: `false` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_COUNTERS_QUEUE_BATCH_SIZE`	Batch size for multichain DB counters export fetcher. Implemented in #13007.	Version: v9.1.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_COUNTERS_QUEUE_CONCURRENCY`	Concurrency for multichain DB counters export fetcher. Implemented in #13007.	Version: v9.1.0+ Default: `10` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_COUNTERS_QUEUE_ENQUEUE_BUSY_WAITING_TIMEOUT`	Timeout before new attempt to append item to multichain DB counters export queue if it’s full. Time format. Implemented in #13007.	Version: v9.1.0+ Default: `1s` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_COUNTERS_QUEUE_MAX_QUEUE_SIZE`	Maximum size of multichain DB counters export queue. Implemented in #13007.	Version: v9.1.0+ Default: `1000` Applications: Indexer
`INDEXER_MULTICHAIN_SEARCH_DB_EXPORT_COUNTERS_QUEUE_INIT_QUERY_LIMIT`	Limit of the init query for processing the counters export queue to the Multichain DB. Implemented in #13007.	Version: v9.1.0+ Default: `1000` Applications: Indexer

TAC Operation Lifecycle Service

Variable	Description	Parameters
`MICROSERVICE_TAC_OPERATION_LIFECYCLE_URL`	TAC Operation Lifecycle Service API URL. Integration is enabled, if this variable value contains valid URL. Implemented in #12367	Version: v8.1.0+ Default: (empty) Applications: API
`MICROSERVICE_TAC_OPERATION_LIFECYCLE_ENABLED`	If `false`, TAC Operation Lifecycle Service integration is disabled despite `MICROSERVICE_TAC_OPERATION_LIFECYCLE_URL`. Implemented in #12367	Version: v8.1.0+ Default: `true` Applications: API

Sourcify

Allows for contract verification via Sourcify

Variable	Description	Parameters
`SOURCIFY_INTEGRATION_ENABLED`	Enables or disables verification of contracts through Sourcify.	Version: v5.1.3+ Default: `false` Applications: API
`SOURCIFY_SERVER_URL`	URL to Sourcify backend.	Version: v3.7.0+ Default: `https://sourcify.dev/server` Applications: API
`SOURCIFY_REPO_URL`	URL to Sourcify repository with fully verified contracts. Override the env var if a custom repository URL is set.	Version: v3.7.0+ Default: `https://repo.sourcify.dev/` Applications: API
`SOURCIFY_POLL_INTERVAL`	Interval between async verification polling requests. Time format. Implemented in #14584.	Version: latest Default: `3s` Applications: API
`SOURCIFY_POLL_MAX_ATTEMPTS`	Maximum number of attempts for async verification polling. Implemented in #14584	Version: latest Default: `20` Applications: API

Tenderly

Variable	Description	Parameters
`SHOW_TENDERLY_LINK`	if `true`, Open in Tenderly” button is displayed on the transaction page. Implemented in #4656	Version: v4.0.0+ Default: (empty) Applications: API
`TENDERLY_CHAIN_PATH`	Chain path to the transaction in Tenderly. For instance, for transactions in xDai, Tenderly link looks like this `https://dashboard.tenderly.co/tx/xdai/0x...`, then `TENDERLY_CHAIN_PATH =/xdai.` Implemented in #4656	Version: v4.0.0+ Default: (empty) Applications: API

Datadog

Integration with the Datadog monitoring and analytics tools

Variable	Description	Parameters
`DATADOG_HOST`	Host configuration setting for Datadog integration.	Version: all Default: (empty) Applications: API
`DATADOG_PORT`	Port configuration setting for Datadog integration.	Version: all Default: (empty) Applications: API

Spandex

Spandex is a library for tracing Elixir applications

Variable	Description	Parameters
`SPANDEX_BATCH_SIZE`	Spandex and Datadog configuration setting.	Version: all Default: (empty) Applications: API
`SPANDEX_SYNC_THRESHOLD`	Spandex and Datadog configuration setting.	Version: all Default: (empty) Applications: API

Analytics

Variables for adding Mixpanel and/or amplitude for visitor analytics.

Variable	Description	Parameters
`MIXPANEL_TOKEN`	Mixpanel project token.	Needs Recompile: ☑️ Version: v5.0.0+ Default: (empty) Applications: API
`MIXPANEL_URL`	Url to use Mixpanel with proxy (Collection via Proxy).	Needs Recompile: ☑️ Version: v5.0.0+ Default: (empty) Applications: API
`AMPLITUDE_API_KEY`	Amplitude API key.	Needs Recompile: ☑️ Version: v5.0.0+ Default: (empty) Applications: API
`AMPLITUDE_URL`	Url to use Amplitude with proxy (Use Domain Proxy to Relay Events).	Needs Recompile: ☑️ Version: v5.0.0+ Default: (empty) Applications: API

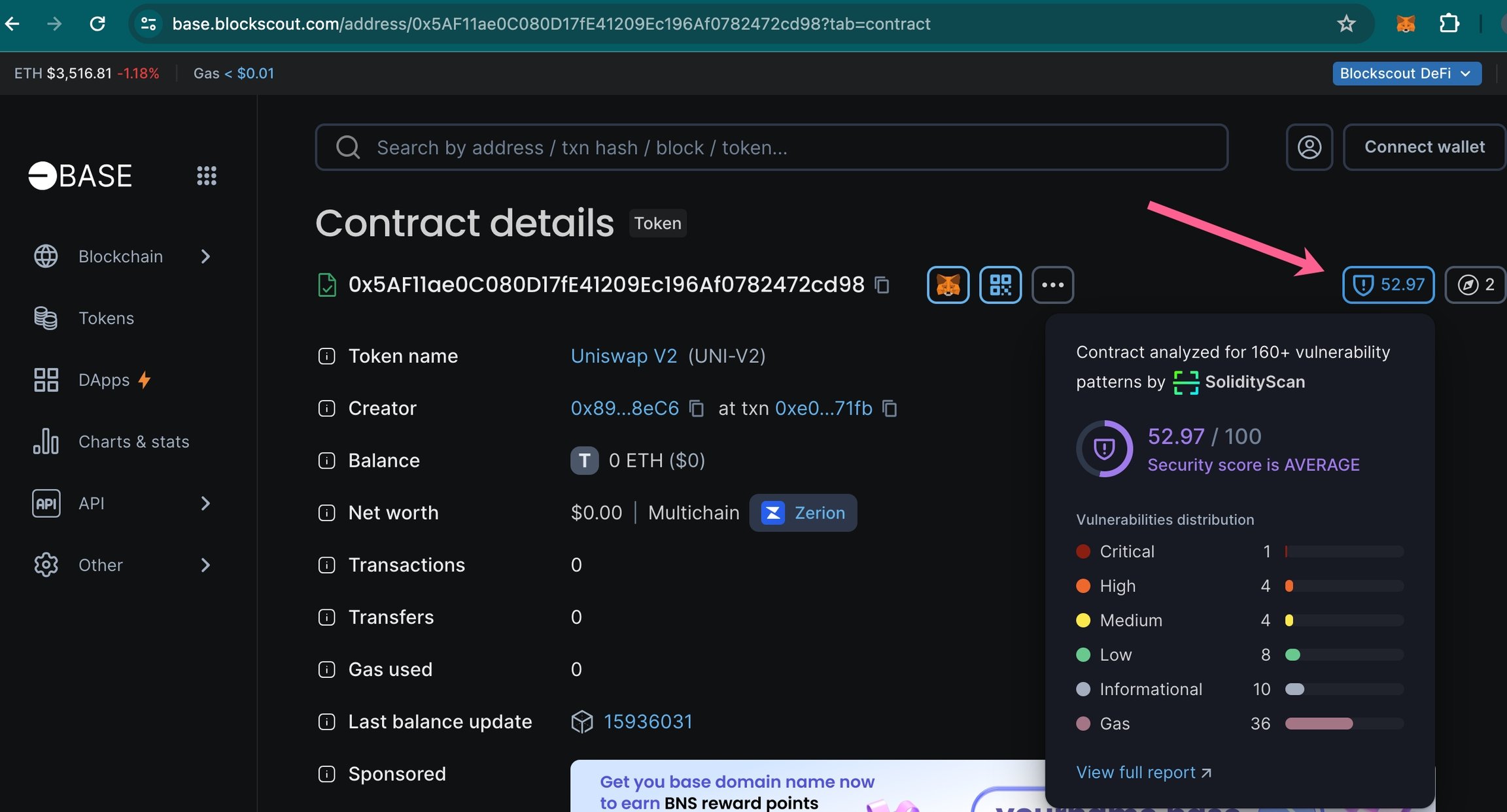

Solidityscan

Enables security scoring for smart contracts

Variable	Description	Parameters
`SOLIDITYSCAN_PLATFORM_ID`	Internal platform id in Solidityscan. Implemented in #10473	Version: v6.8.0+ Default: 16 Applications: API
`SOLIDITYSCAN_CHAIN_ID`	Internal chain id in Solidityscan. It may not match with actual chain ID. Implemented in #8908	Version: v5.3.3+ Default: (empty) Applications: API
`SOLIDITYSCAN_API_TOKEN`	API token for usage of Solidityscan API.	Version: v5.3.3+ Default: (empty) Applications: API

Noves.fi

Adds additional transaction details such as summaries and asset flows. More info here.

Variable	Description	Parameters
`NOVES_FI_BASE_API_URL`	Noves.fi API base URL. Implemented in #9056.	Version: v6.1.0+ Default: `https://blockscout.noves.fi` Applications: API
`NOVES_FI_CHAIN_NAME`	Noves.fi API chain name. Implemented in #9056.	Version: v6.1.0+ Default: (empty) Applications: API
`NOVES_FI_API_TOKEN`	Noves.fi API token. Implemented in #9056.	Version: v6.1.0+ Default: (empty) Applications: API
Version: v6.6.0+ Default: `50` Applications: API

Xname app

Enables Xname app integration, which includes humanity score displayment.

Variable	Description	Parameters
`XNAME_BASE_API_URL`	Xname API base URL. Implemented in #11010.	Version: v6.9.2+ Default: `https://gateway.xname.app` Applications: API
`XNAME_API_TOKEN`	Xname API token. Implemented in #11010.	Version: v6.9.2+ Default: (empty) Applications: API

Stylus contract verifier

Connecting to the Stylus smart contract verification service

Variable	Description	Parameters
`MICROSERVICE_STYLUS_VERIFIER_URL`	URL of Stylus verifier. If set valid url and `CHAIN_TYPE=arbitrum`, integration with Stylus verifier is enabled. Implemented in #11183	Version: v6.10.0+ Default: (empty) Applications: API
